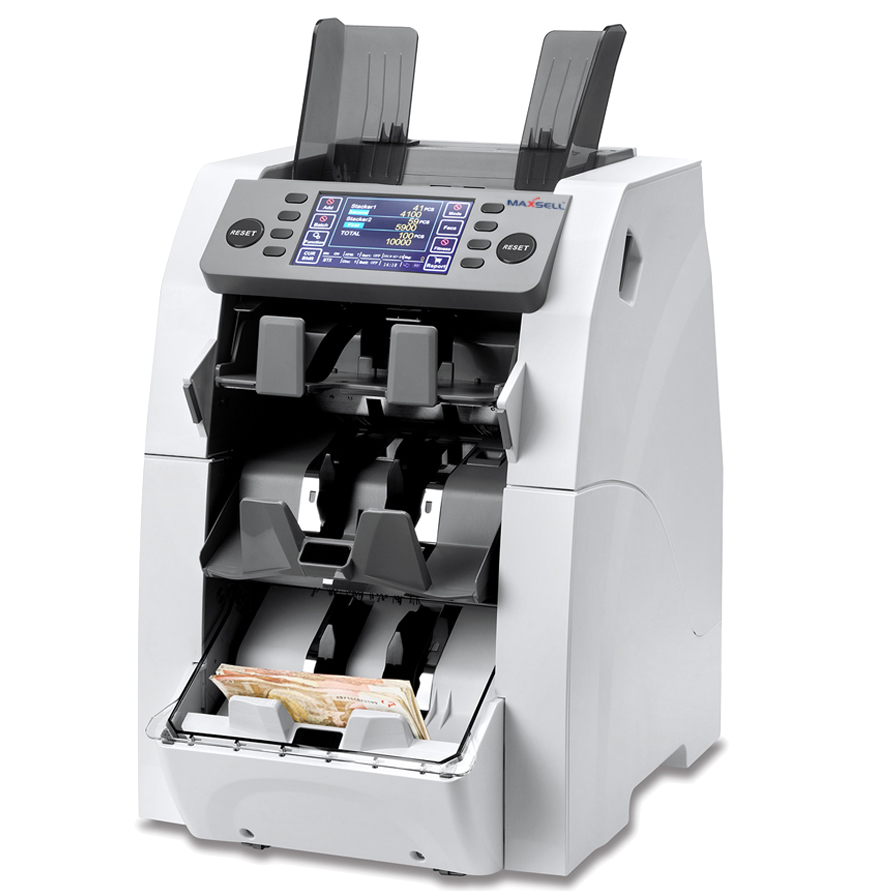

Matrix 8300

Matrix 8300

Advanced sorting & detection

A combo of best detection technologies such as double-face image recognition, IR, and MT & FL for an efficient sorting based on fitness, denomination, face, and orientation.

Recording & storage of serial numbers

Leverage the sophisticated detection techniques to accurately recognize serial numbers, and store and manage them for later use.

Dust-proof design

Seamless counting with built-in dust collection design and fully-automatic dust-proof door for protection from the dust during counting.

Easy Design

Dust proof design and twin dust collector tray for easy machine maintenance and special block door to block noise and dust.


MATRIX 8300 SPECIFICATIONS

Counting speed800~1200 notes/min
Hopper capacity1000 notes (continuous feeding)
Stacker capacity200 notes
Reject Capacity100 notes
Detection technologyTwin CIS, UV, MG, MT, IR, 2D & 3D
Noise≤60Db
Power supply100-240V AC,50/60Hz 3.0A
Power consumption≤90W
Dimensions 390(L)*310(W)*520(H)mm
Weight30Kg
InterfaceRS-232, Printer, USB, SD card, LAN
