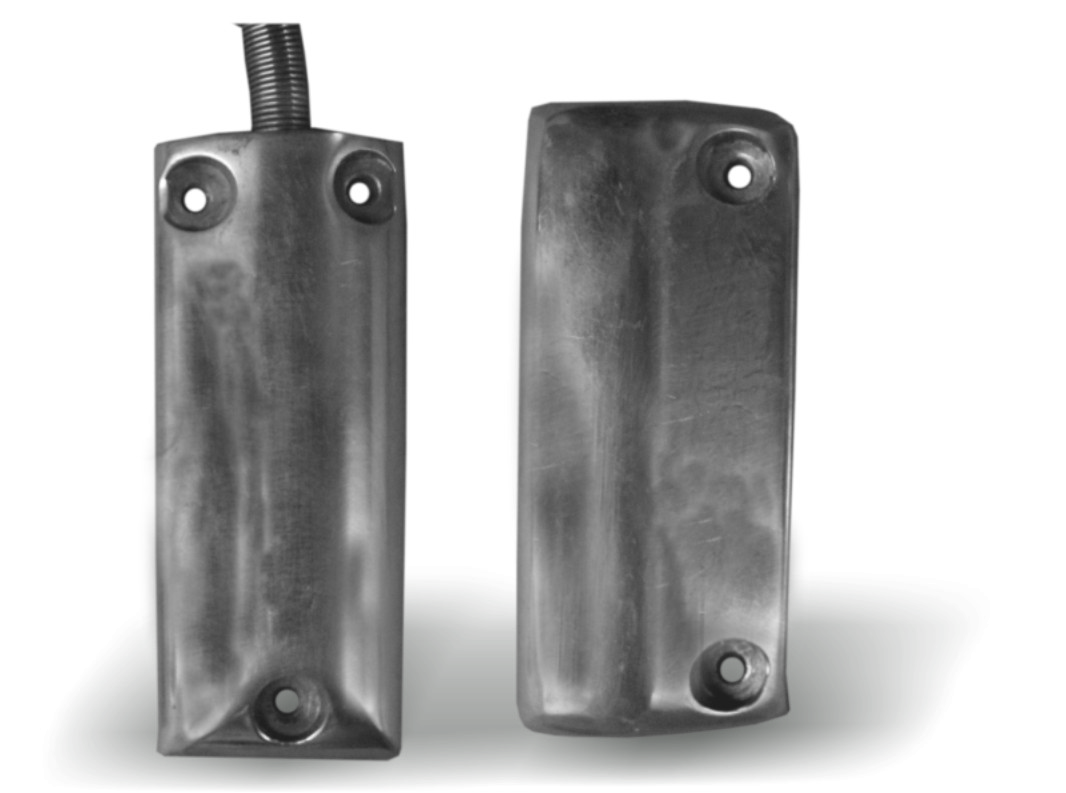

NS-213

Shutter Sensor

Standard Features

• Heavy Duty Solid Aluminum Body Roller Shutter Magnetic Contact
• Size :A (Switch) 86mm X 36mm X12mm B. (Magnet Part) 87mm X 36mm X17mm
• Hole Gape for Magnet Part : 40mm
• Size of screw 3mm with head of 5mm.
• Operating Gap : 50mm Minimum. (80mm Optional Available on request)
• Current Rating : 1 OOVDC, 0.5 A, 1 OW.
• Net weight : 25gms Colors available : Red & Green
• Contact type : NO or NC.
• Material : Die Casted Aluminum.
